Physioled Therma – capacitive and resistive TECAR unit

Overview

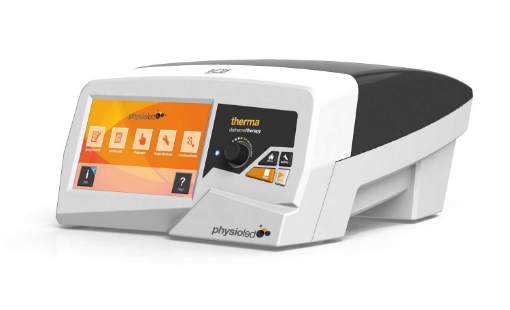

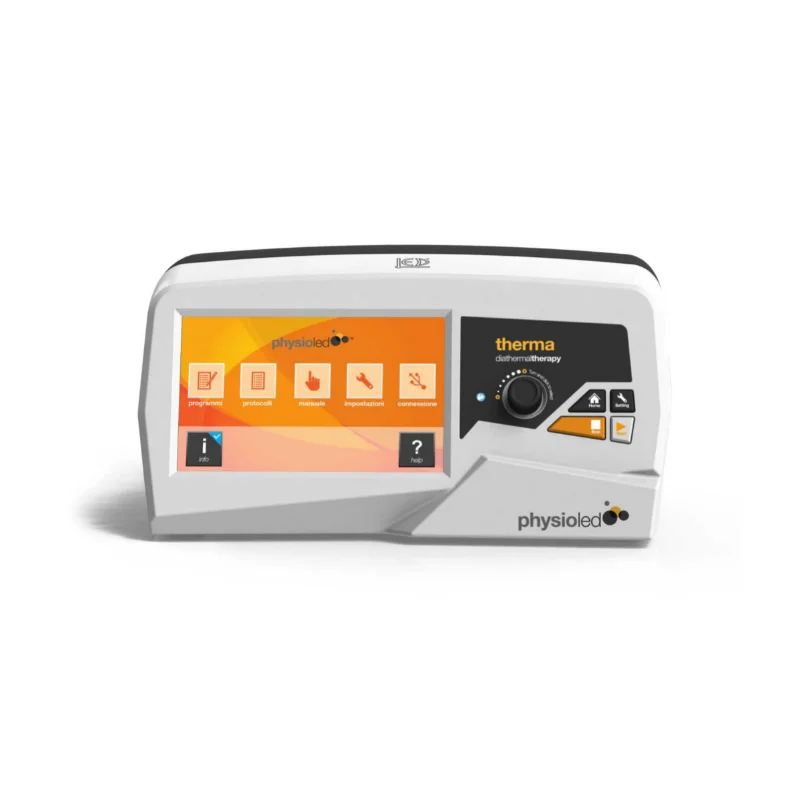

Physioled Therma THR001 is a professional TECAR unit for capacitive and resistive diathermy. Both modes belong to the same device and use the corresponding heads. The package includes the THRMA handpiece, neutral electrode and six heads: three capacitive and three resistive, in 24, 48 and 62 mm diameters.

Operating modes and accessory selection

Documented frequencies are 450 and 550 kHz. The manufacturer lists maximum power as 150 W / 250 VA, separately from the 300 VA electrical input. Preset and custom programs are available; the handpiece has 0°, 45° and 90° positions. The practitioner selects mode, head and settings according to the manual and patient assessment. The 80 mm heads are optional, not part of the standard set.

Technical data

Included equipment

THRTECR0 contains one capacitive and one resistive head in each diameter: 24, 48 and 62 mm. Neutral electrode 00401.01 measures 160 × 240 mm with a 3 m cable. Order additional or replacement heads by exact code, not diameter alone. Do not assume TECAR compatibility of a cream or accessory without confirmation.

Accessories on request

Optional accessories are quoted separately on request using the unit and accessory codes. Items included in the configuration need not be purchased again; they may be ordered separately as replacements. Compatibility and delivery time are confirmed in the quotation.

Use and safety

Professional use by trained personnel after patient assessment and review of the manual’s contraindications. The practitioner selects accessories and settings. Check cables, contact, mounting and cleaning according to the instructions. This page does not replace the manual or prescribe individual doses or protocols.

Frequently asked questions

How do I choose the configuration and accessories?

Physioled Therma THR001 is a professional TECAR unit for capacitive and resistive diathermy. Both modes belong to the same device and use the corresponding heads. The package includes the THRMA handpiece, neutral electrode and six heads: three capacitive and three resistive, in 24, 48 and 62 mm diameters.

What must be confirmed before ordering?

THRTECR0 contains one capacitive and one resistive head in each diameter: 24, 48 and 62 mm. Neutral electrode 00401.01 measures 160 × 240 mm with a 3 m cable. Order additional or replacement heads by exact code, not diameter alone. Do not assume TECAR compatibility of a cream or accessory without confirmation.

Which accessories can I order separately?

Optional accessories are quoted separately on request using the unit and accessory codes. Items included in the configuration need not be purchased again; they may be ordered separately as replacements. Compatibility and delivery time are confirmed in the quotation.
