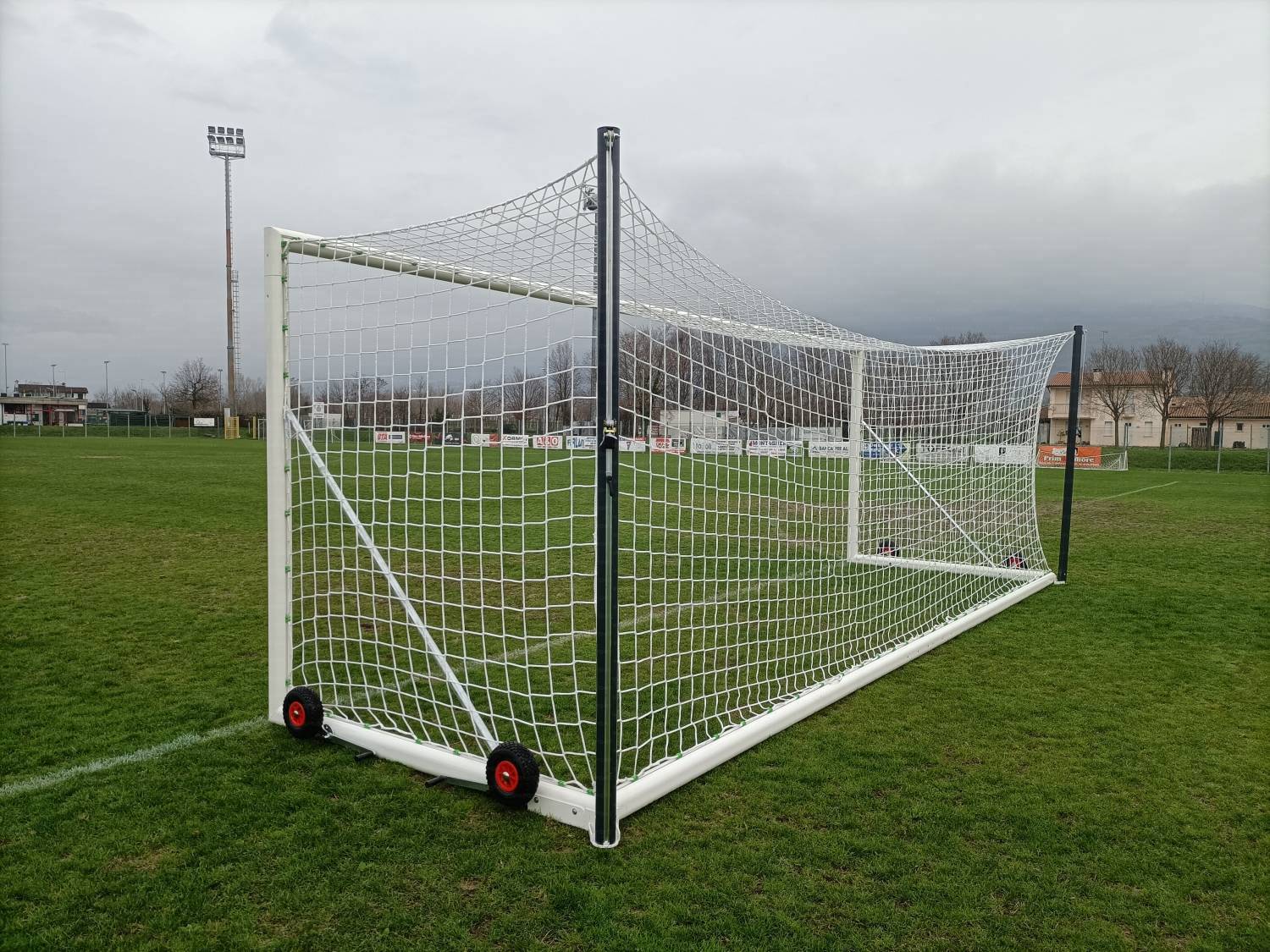

Mobile football goal with wheels and net tensioning 7.32 × 2.44 m with net included — VI 5902

One goal with one net and the functional equipment listed below. The selling unit is one equipped goal.

Technical specifications

• Model: VI 5902
• Dimensions: 7.32 × 2.44 m
• Material: Aluminium
• Profile: Oval, internally ribbed, 100 x 120 mm
• Joints: Welded corners, aluminium alloy 6005
• Crossbar: Two-piece crossbar
• Net fixing: Plastic hooks
• Installation: Freestanding
• Internal base depth: 2 m
• Base: Aluminium profile matching the uprights
• Standard: Manufacturer-declared conformity with UNI EN 748; no separate certification is claimed. (3 / 4)

Package contents

• 1 × Mobile aluminium football goal 7.32 × 2.44 m
• 1 × Goal net 7.32 × 2.44 m, PP Ø6 mm — VI 6114
• Rear bottom frame included.
• 3 × Counterweight container — 100 × 120 mm — VI 6041 — Empty
• 1 set for one goal: Net tensioning system — VI 6012
• 1 set for one goal: Goal transport kit, 4 wheels — VI 6017 — 4

Goal net — 6114

• Model: 6114
• Goal size: 7.32 × 2.44 m
• Net dimensions: 7.5 × 2.5 m
• Material: PP
• Cord diameter: 6 mm
• Net construction: Square, knotless mesh
• Colour: White
• Mesh size: 120 × 120 mm
• Upper depth: 2 m
• Lower depth: 2 m

6012: two fixing plates and two anthracite aluminium rear posts, Ø80 mm, with ratchet tensioning.

6017: four rubber wheels, manual spring-loaded piston mechanism with three positions and ergonomic handles.

Installation and use

Counterweight containers are supplied empty. Fill them with sand and fit them before use, following the goal manual. Do not use the goal without the specified stabilisation.

• Filled weight per container: ≈ 15 kg
• Total filled counterweight: ≈ 45 kg (3 × 15)

Filling material, foundations and installation work are not included. Assemble and secure the goal according to the manufacturer’s instructions before use.
