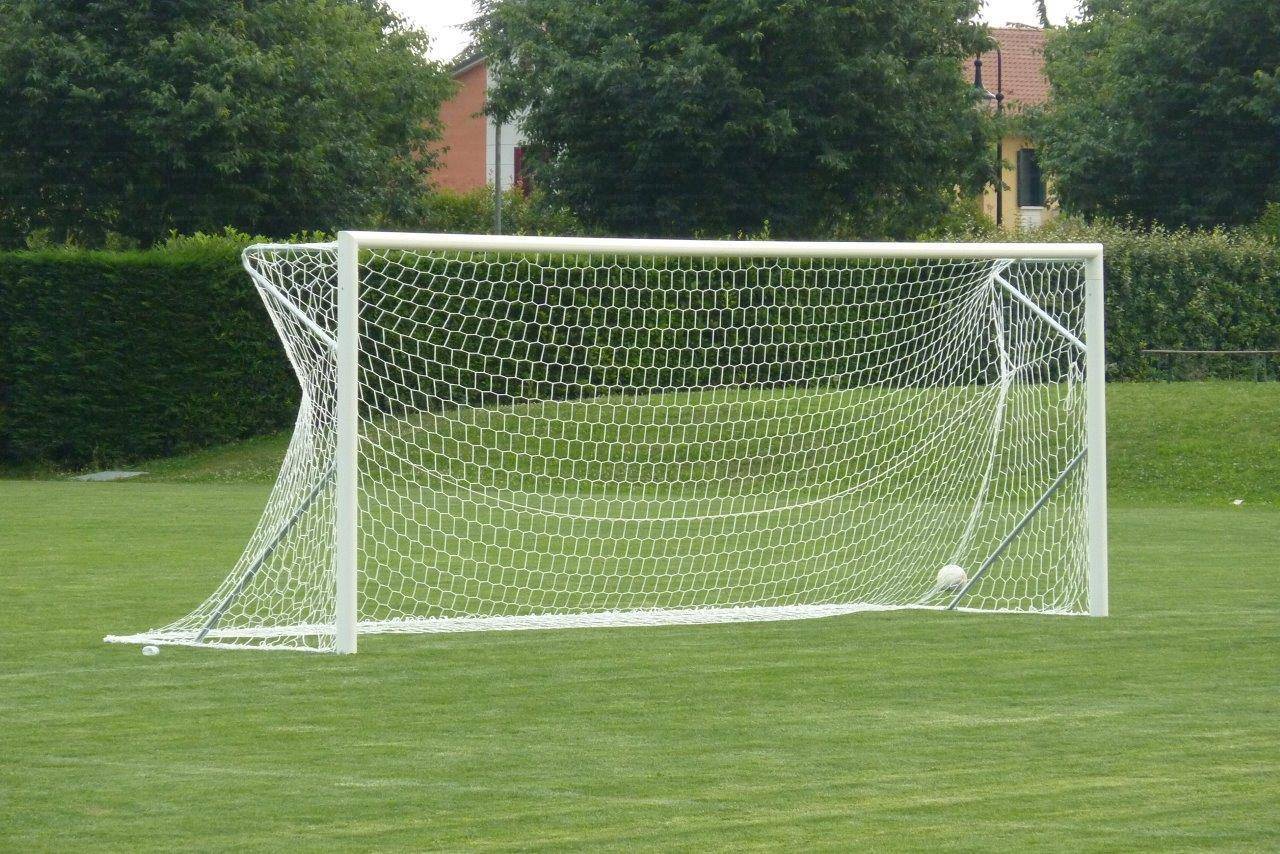

Mobile aluminium football goal 7.32 × 2.44 m — Folding frame with net included — VI 5901

One goal with one net and the functional equipment listed below. The selling unit is one equipped goal.

Technical specifications

• Model: VI 5901
• Dimensions: 7.32 × 2.44 m
• Material: Aluminium
• Profile: Oval, internally ribbed, 100 x 120 mm
• Joints: Welded corners, aluminium alloy 6005
• Crossbar: Two-piece crossbar
• Net fixing: Plastic hooks
• Installation: Freestanding
• Overall base depth: 2.10 m
• Upper depth: 0.8 m
• Base: Folding galvanized steel frame, Ø40 mm, with brace
• Net supports: Galvanized upper net supports
• Standard: Built following UNI EN 748 requirements, but without certification, as confirmed by the manufacturer.

Package contents

• 1 × Mobile aluminium football goal 7.32 × 2.44 m
• 1 × Goal net 7.32 × 2.44 m, PE Ø4 mm — VI 6105
• Rear bottom frame included.
• 3 × Counterweight container — Ø120 mm — VI 6044 — Empty

Goal net — 6105

• Model: 6105
• Goal size: 7.32 × 2.44 m
• Net dimensions: 7.5 × 2.5 m
• Material: PE
• Cord diameter: 4 mm
• Net construction: Square, knotted mesh
• Colour: White
• Mesh size: 130 × 130 mm
• Upper depth: 1 m
• Lower depth: 2 m

Installation and use

Counterweight containers are supplied empty. Fill them with sand and fit them before use, following the goal manual. Do not use the goal without the specified stabilisation.

• Filled weight per container: ≈ 27 kg
• Total filled counterweight: ≈ 81 kg (3 × 27)

Filling material, foundations and installation work are not included. Assemble and secure the goal according to the manufacturer’s instructions before use.

Optional accessories

• Bottom frame padding set — VI 6042
