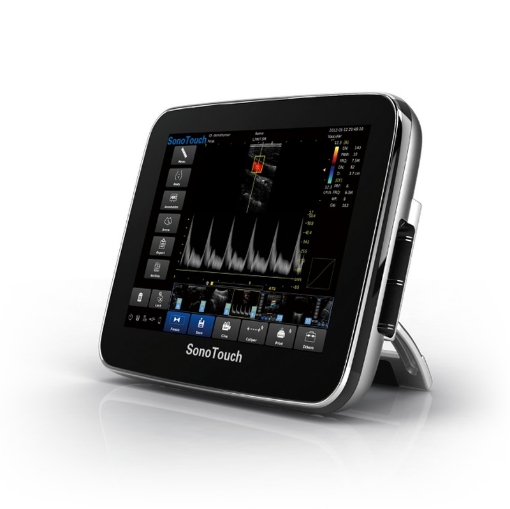

Zimmer Sono Touch - Ultrasound Device

Characteristics:

• Touch screen
• USB port for quick image saving
• Slim, elegant and functional
• Built-in battery for up to 2.5 hours of independent use
• Tilt function for better viewing comfort

SonoTouch has a modern and innovative touch screen, which is simple and efficient to work with. A touch screen ultrasound like you've never seen before.

• Light weight
• Practical
• Portable

Sono Touch supports the diagnostic process with quality image, streamlined workflow, and portability. Without a doubt, SonoTouch has a good design too.

Efficiency from the start:

• Light
• Apply
• To diagnose

Thanks to its intuitive handling and optimized workflow, SonoTouch is ready to use in seconds.

More time thanks to process optimization. The EasyView ™ image allows you to save test results and export images in different formats.

Technical data:

• Display types: B, B / B, 4B, M, B / M, CFM (Color), PW
• Image Processing: THI (Tissue Harmonic Imaging),
• Image enhancement: SRA (Speckle Reduction Algorithm), I-image ™
• Special Features: Composite Image, Trapezoidal Image (widens the field of view when using the linear probe), Zoom, Patient Database.
• Monitor: 10 "touch screen.
• Control panel: Touch
• Probes frequency range: 2.5 MHz - 11 MHz (depending on the probe used)
• Ports: LAN RJ45, VGA, 3 USB, foot switch, 1 printer probe port, connector for DC power supply
• Power supply: Battery / Mains adapter (AC 100V-240V, 50Hz-60Hz)
• Dimensions: W / D / H 31.5cm / 8.5cm / 25.5cm
• Weight: 3.9 kg with battery.

Contains:

• Sono Touch Device
• Probe (to choose 1 of 3 available)
• Linear L7S: ZM8041
• Linear L7M-A: ZM8042
• Convex C3: ZM8043
• Network wire
• Touch keyboard
• Lithium ion battery
